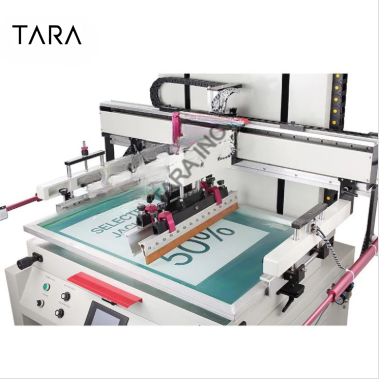

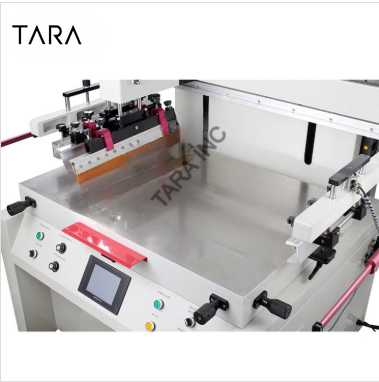

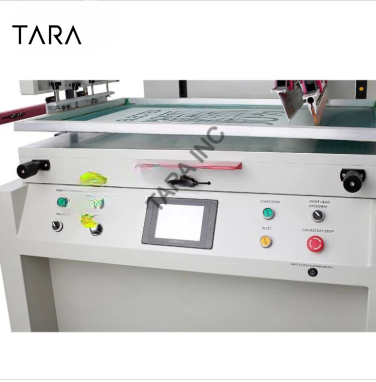

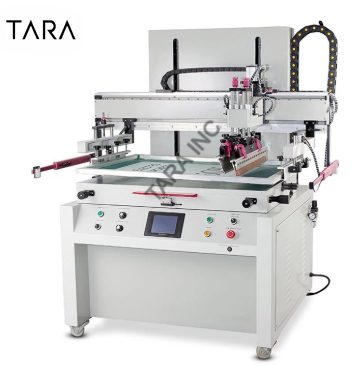

HP-4060FV Electric Air Suction Worktable Flat Screen Printing Machine/ Screen Printing on Paper

HP-4060F screen printing machine, controlled by variable frequency motor, has fast response speed and accurate starting and stopping position.

The screen printer suitable for printing PCB board, silicone, textiles, plastic keys, PET, cardboard, nameplate, trademark, IC board, thin film switch circuit, mobile phone lens, glass, liquid crystal display board and other plane materials.

Machine Features:

Designed for flat surface applications;

Reliable branded pneumatic components, computer control systems with LCD display;

Guide rail sliding structure, high precision, smooth operation;

Scraper constant pressure device to ensure the pressure stability in the printing process;

The Angle of scraper/back ink knife can be adjusted arbitrarily.

Machine Specification:

Model NO.: HP-4060FV

Drive System: Electric Motor

Max Print Size: 700x500mm

Printing Capacity: 1200 pcs/hr

Weight: 320 kg

Voltage: 110V/220V/230V 50/60Hz

Machine Dimension: 1150x1000x1700 mm

Precautions For Use:

Ink use: different materials for printing, such as plastic, glass or metal, must be used different ink.

According to the speed of ink drying, people need to add an appropriate amount of diluent to maintain the viscosity of the ink in the printing process.

If the scraping ink is not clean at some part, screw the screw at the corresponding position properly and it can be effectively improved.

...
